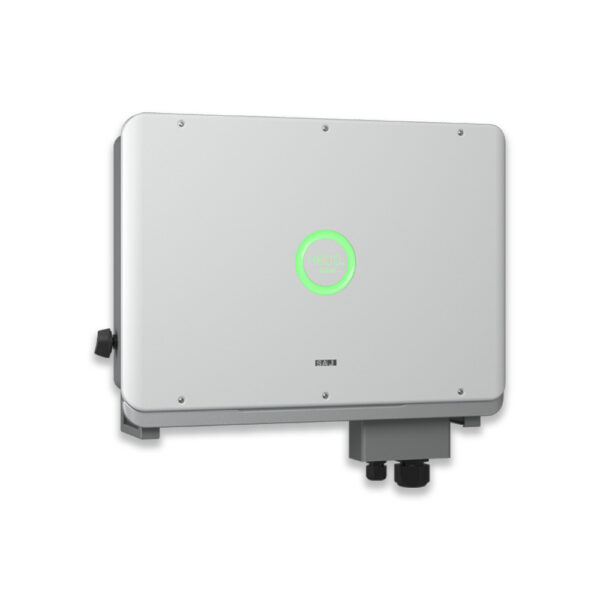

SAJ R6-20KT2-32 20kW Grid-Connected Solar Inverter

  • Pick up from the Luqman Traders Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

  • 20kW rated output (21.5kW peak)
  • 98.8% peak efficiency
  • Dual MPPT, up to 1100V PV input
  • Integrated DC/AC surge protection
  • Wi-Fi + RS485/RJ45 monitoring

Original price was: ₨245,000.00.Current price is: ₨231,000.00.

Description

The SAJ R6-20K-T2-32 is a three-phase grid-tied inverter with dual MPPT and integrated surge protection, built for commercial rooftop solar with high-yield performance.

  • Rated Output Power: 20,000W (21,500W Rated, 22,500W Max). Three-phase configuration.
  • Efficiency: Peak 98.8%. Maximizes energy yield across varying conditions.
  • MPPT Configuration: 2 MPPT Trackers. Max input current 32A, up to 1100V PV input voltage.
  • AC Output Compatibility: 230/400, 380/220, 380/400 VAC. Flexible for multiple grid configurations.
  • Protection: Integrated DC & AC Surge Protection. Optional AFCI function for fire prevention.
  • Communication: RS232/RS485/DRI/Ethernet/RJ45/Wi-Fi. Supports 24-hour load and commercial monitoring.

What’s in the box:

  • 1x Inverter Unit
  • 1x Mounting Bracket
  • 1x User Manual
  • 1x Warranty Card
Rated Output Power20, 000W (21, 500W Rated, 22, 500W Max)
EfficiencyPeak 98.8%
MPPT Configuration2 MPPT Trackers
AC Output Compatibility230/400, 380/220, 380/400 VAC
ProtectionIntegrated DC & AC Surge Protection
CommunicationRS232/RS485/DRI/Ethernet/RJ45/Wi-Fi
